DM-930 Automotive Digital Multimeter
- $265.00
- $265.00
- Unit price
- per

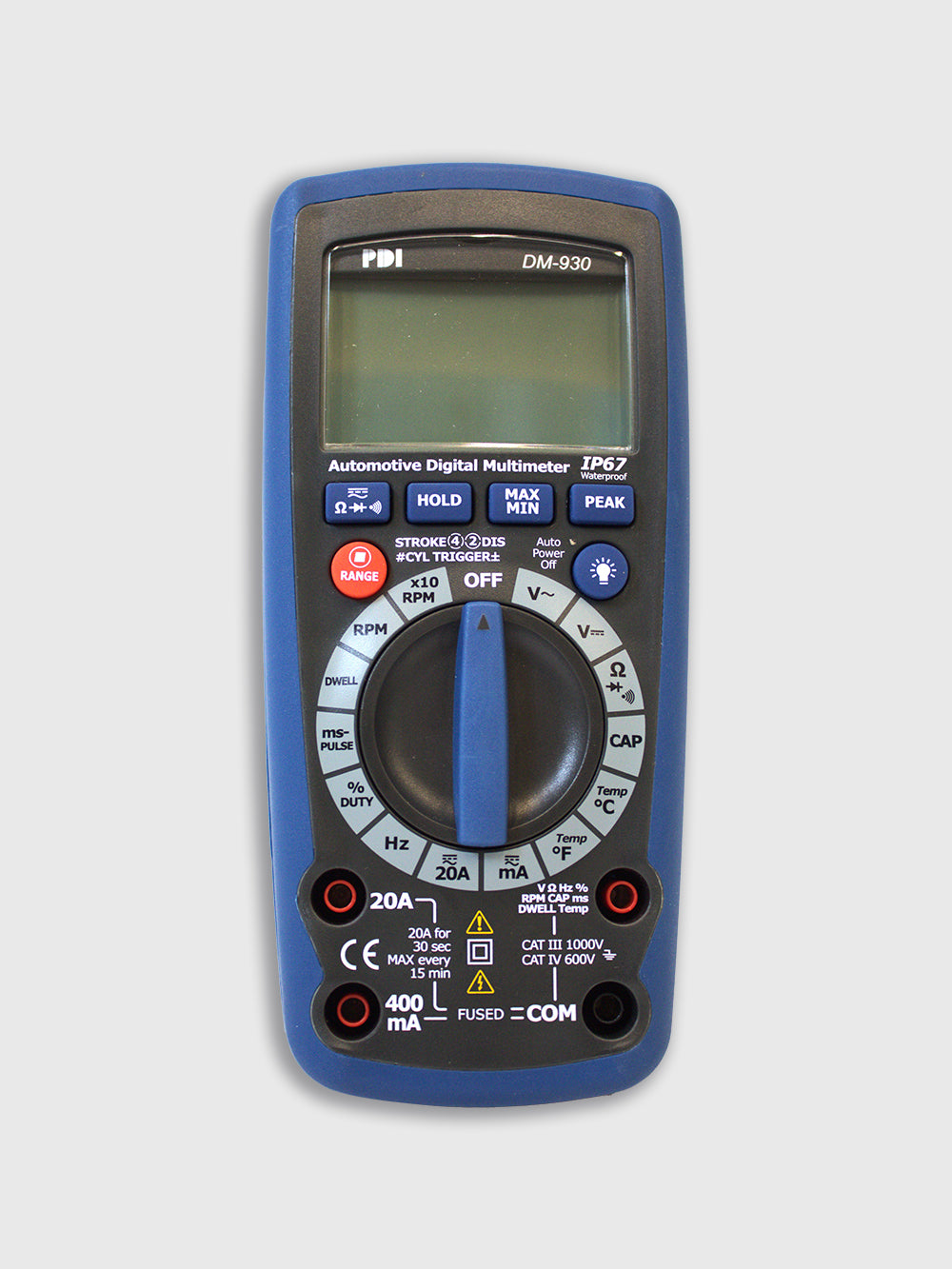

The DM-930 is the next step in the advanced Automotive Meters, combining class leading accuracy and range with the unparalleled durability that comes along with IP67 design and the peace of mind that comes with a 2-Year warranty.
The DM-930 is dust-proof, waterproof and impact resistant. It can measure Current, AC/DC Voltage, RPM, Temperature, Capacitance, Frequency, Resistance, Dwell Angle, %Duty Cycle, ms-Pulse Width and perform Diode Tests. The DM-930 also has Peak, Max/Min and Hold functions to allow the technician to take all of the necessary measurements in order to service today's high-tech vehicles.

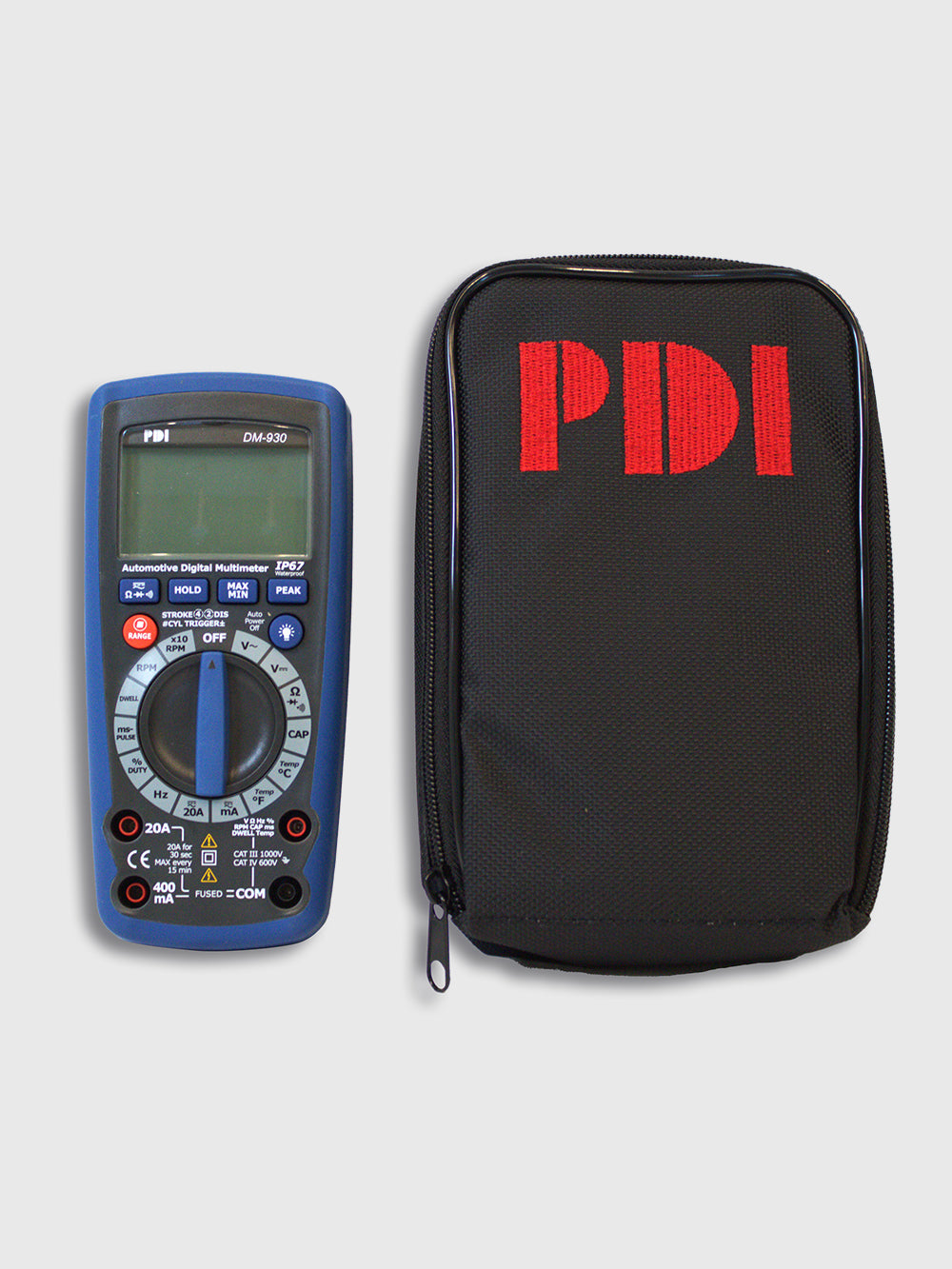

The DM-930 comes complete with a premium set of IP67 Test Leads, Alligator Clip Tips, Inductive Pickup (RPM), K-type Thermocouple, K-type adapter and PDI Soft Side Tool Bag.
| Specifications |
Range |
Res. |
Basic Accuracy |
|
Digital Display Counts |
4000 | N/A | N/A |
|
Voltage DC |
600V | 0.1mV | ± 0.5% ± 3 dgts |
|
Voltage AC |
600V | 0.1mV | ± 1% ± 3 dgts |
|
Current DC |
20A | 10µA | ± 1.5% ± 3 dgts |
|
Current AC |
20A | 10µA | ± 1.8% ± 5 dgts |
| Resistance | 40MΩ | 0.1Ω | ± 1% ± 2 dgts |
| Capacitance | 40mF | 1pF | ± 3% ± 5 dgts |
| Frequency | 40MHz | 1Hz | ± 1.5% ± 3 dgts |
| Temperature |
-22°F ~ +1832°F -30°C ~ +1000°C |
1°F 1°C |
± 3% ± 8°F ± 3% ± 5°C |
| Duty Cycle |
0.5% ` 99.0% |
0.1% |
± 2% ± 5 dgts |
| Pulse Width | 1 ~ 20ms | 0.1ms | ± 2% ± 20 dgts |
| Diode Test | 1.0mA typical | 1mV | ± 5% ± 15 dgts |
| RPM | 12000 RPM | 1 RPM | ± 2% ± 4 dgts |
| Dwell Angle | 0 ~ 90° | 0.1° | ± 2% ± 4 dgts |
